Nashville Wire Products offers pallet supports for added strength.

Pallet Supports

quad-square-80x80-blue

Pallet Supports provide a simplified, wireless solution that drop in to support pallets. We offer both double flanged and hat style supports in three common depths. Get the most out of your racks by adding pallet supports to elevate and organize material with ease.

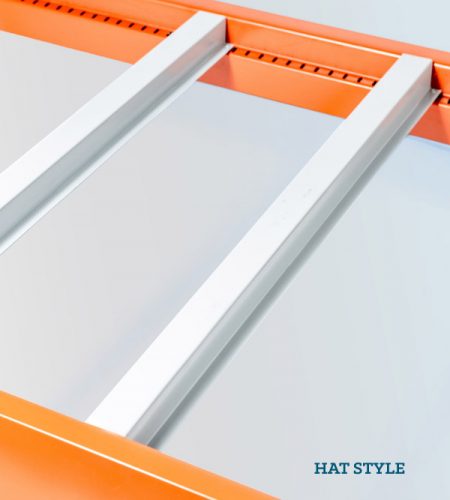

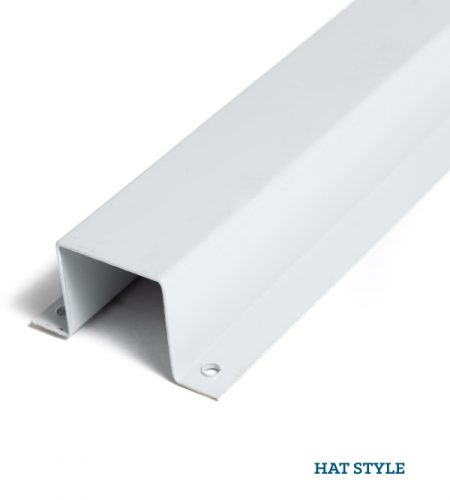

Hat style pallet supports provide a solution to bolster the capacity and better distribute loads when used in conjunction with wire decks. This style fits inside the step beam.

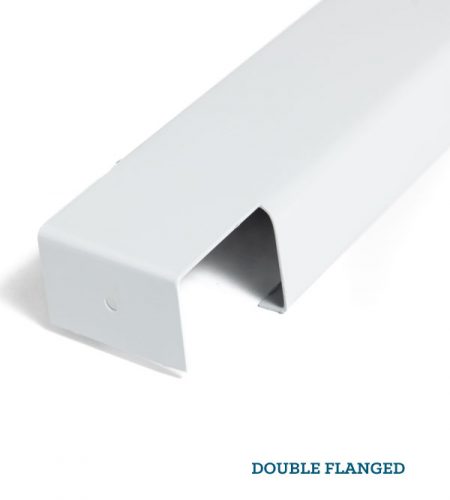

Double flanged pallet supports can be used as an alternative to wire decks. This style goes over the top of the step beam for a secure fit.


Technical Info:

  • Pre-punched holes for tek-screws makes installation simple while providing additional security.
  • Hat style pallet supports have a 2” top width.
  • Double flanged pallet supports have a 2.5” top width.
  • Rigid design allows for up to 1,450 lbs. capacity per individual pallet support.

Hat Style Specifications

Part #Rack DepthInside DimensionCapacity
PS42HS42"38.375"1250 lbs.
PS44HS44"40.375"1200 lbs.
PS48HS48"44.375"1100 lbs.

Double Flanged Specifications

Part #Rack DepthInside DimensionCapacity
PS42DF42"38.375"1450 lbs.
PS44DF44"40.375"1400 lbs.
PS48DF48"44.375"1300 lbs.

Finishes

Gray powder coated

Galvanized
